Product Details:
Payment & Shipping Terms:
|
| Material: | Zinc | Type: | Flexible Fitting |
|---|---|---|---|
| Color: | Grey | Application: | Link Pipe |
| Size: | 1/2''-4'' | Certification: | UL |
| Shape: | Reducing | ||
| Highlight: | Reducing Flexible Conduit And Fittings,Reducing Liquid Tight Straight Connector,1000pcs Flexible Conduit And Fittings |
||

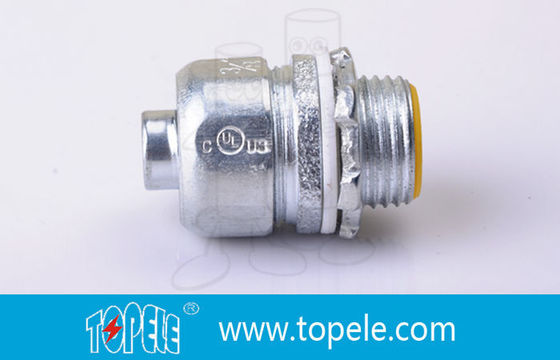

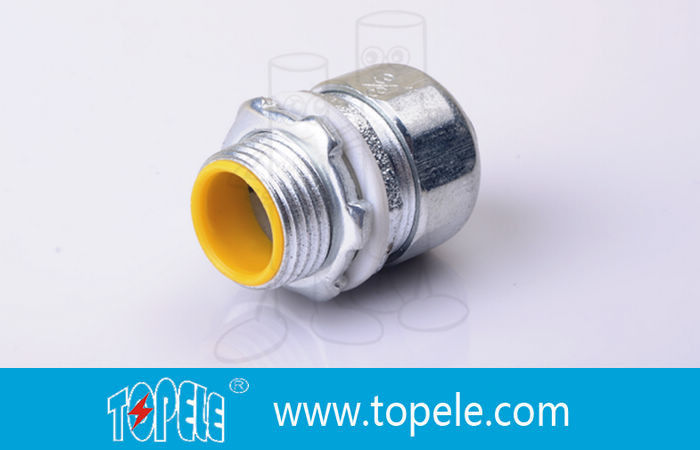

| Product | Liquid Tight Straight Connector |
| Brand | TOPELE |
| Standard | UL |
| Size | 1/2''-4'' |
Product Details
Straight Liquid Tight Connector is for use with metallic and nonmetallic “Type B” liquid tight conduit to a steel outlet box or any other metallic enclosure. The liquid-tight connector is with NPT threads and gasket. The liquid tight straight connector is suitable for use in Class 1 Division 2, Class II, Divisions 1 & 2; and Class III, Divisions 1 & 2 per NEC 501.30 (B).
| CAT# | SIZE |
| LTC-15 | 1/2'' |
| LTC-20 | 3/4'' |
| LTC-25 | 1'' |
| LTC-32 | 1-1/4'' |
| LTC-38 | 1-1/2'' |
| LTC--50 | 2'' |
| LTC-64 | 2-1/2'' |
| LTC-75 | 3'' |
| LTC-100 | 4'' |
Application
Furnished with locknut and sealing ring
Yellow and blue two kinds of gasket available
For use with both metallic liquid tight conduit and nonmetallic liquuid tight conduit
Mainly used in the equipment which adopted to connect electricity such as cable,connection box and control box
Used to positively bond conduits to boxes or enclosures in both wet and damp locations
Product features
High quality thinckened zinc alloy,long service life,good-looking appearance.
Water and dust resistant
Size and thread standard can be produces according to you requirements.
Contact Person: Ms. Sharon Zhou
Tel: +86-15988402508
Fax: 86-571-56059920
