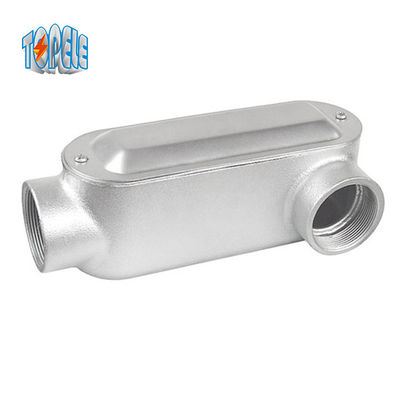

LL Type Thread Malleable Iron Rigid Conduit Body

LL Type Thread Electrical Malleable Iron IMC GI Conduit Body

Quick Details

Place of Origin:Zhejiang, China

Brand Name:topele

Model Number:LL

Type:Combustion-Proof

Material:Iron

Size:1/2" to 4"

Standard Materials:Malleable iron

Standard Finish:Zinc plated or Aluminum enameled

Tapered threaded hubs:NPT

Features:Suitable for use in concrete

Supply Ability:500000 Piece/Pieces per Month

Packaging & Delivery

Packaging Details:As customer requested, standard package is carton box with tie.

Port:China Port

EMT conduit LL Type Malleable Iron Conduit Body

Standard Materials:

* Body: Malleable iron or gray iron
* Cover: Stamped steel or malleable iron or gray iron
* Cover screw: Galvanized steel or stainless steel
* Gasket: Neoprene
Standard Finish:

* Body: Hot-dipped galvanized & zinc electroplate
Zinc electroplate & enamel coat
* Cover: Zinc electroplate or pre-galvanized
Conduit body Standards:
ANSI, UL514A, NEMA FB-1, CSA C22.2 No.18.3
Application:
* Serve as pulling fittings
* Make bends in conduit system
* Provide openings for splicing
* Connect and change direction of conduit runs
* Allow connections for branch runs
* Permit access to conductors for maintenance

Features:
* Tapered threaded hubs - NPT
* Suitable for use in concrete
* Smooth, rounded integral bushings in hubs protect conductor insulation
* Accurately tapped, tapered threads for tight, rigid joints and excellent ground continuity
* Flat back design provides greater cubic content for easier wire pulling, and more room for splicing. Fits flush and snug against flat surfaces for more stable installation
* Covers with gaskets are approved for use in wet locations
* Smooth hub bushings and cover openings protect conductor insulation. Smooth hub openings allow easy conduit joining
