Product Details:
Payment & Shipping Terms:
|
| Material: | Steel | Surface Treatment: | Hot Dip Galvanized |
|---|---|---|---|
| Length: | 10 Ft | Type: | Electrical Pipe |
| Thickness: | 1.5-3.81mm | ||
| Highlight: | Electroplated Couplings Rigid Metal Conduit,CERTIFICATE Rigid Metal Conduit,10ft Rigid Metal Conduit |
||

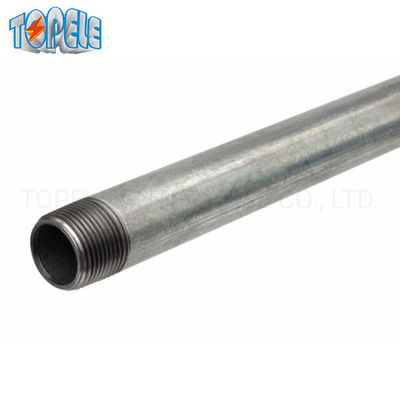

Galvanized Steel Rigid Conduit Metal Conduit with Threaded Coupling
Description:

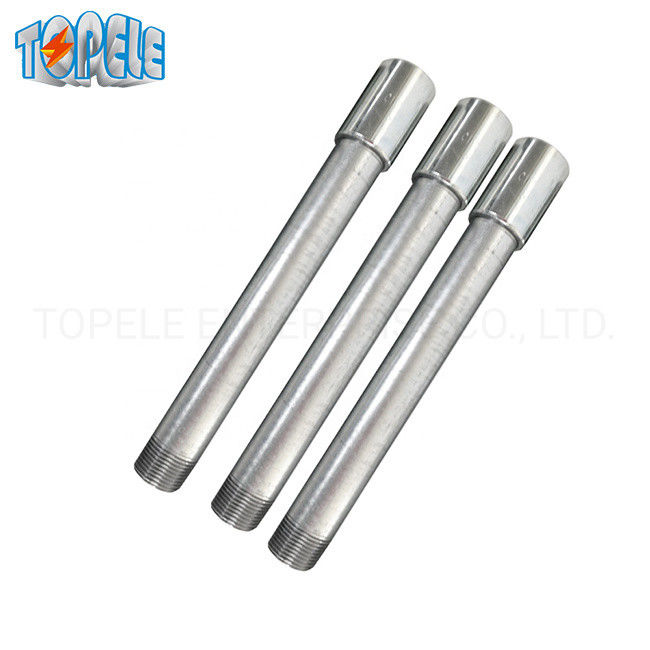

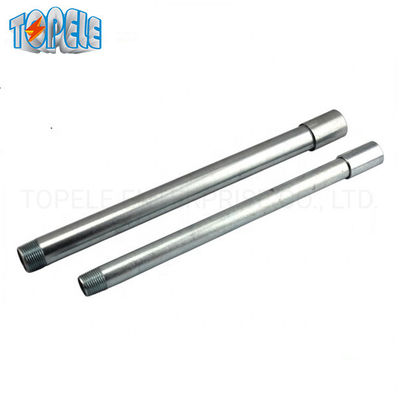

ANSI C80.6 Electrical Pre-galvanized /Hot-dipped Galvanized IMC Conduit Pipe
with a integral coupling and a protection cap
Applications:
TOPELE IMC CONDUIT is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This IMC CONDUIT is made of Pre-galvanized steel and has an organic coating inside.
IMC Conduit provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields and features electroplated couplings to resist buildup of zinc on the threads.
Used as a threadable steel raceway for protection and routing of electrical wiring.
Specifications:
Material: B235/G60
Standard: UL1242 /ANSI C80.6
Finish: Pre-galvanized
Size: 1/2", 3/4", 1", 1-1/4" ,1-1/2", 2", 2-1/2", 3",3-1/2" 4"
Outside diameter: 113.3mm
Wall thickness: 3.56mm
Norinal weight :29.41KG/PC
Length: 3.05m
Pieces/bundle: woven bag with steel strap.
|
nominal diameter |
external diameter |
thickness of wall |
length |
packing |
weight/unit(kg) |
Threads Inch |
|
IMC CONDUIT (INTERMEDIATE METAL CONDUIT) |
||||||
|
1/2" |
20.7mm |
1.98mm |
3.05 |
15pcs/bundle |
2.79 |
14 |
|
3/4" |
11-1/2"26.1mm |
2.1mm |
3.05 |
10pcs/bundle |
3.82 |
14 |
|
1" |
32.8mm |
2.35mm |
3.05 |
8pcs/bundle |
5.38 |
11-1/2 |
|
1-1/4" |
41.6mm |
2.42mm |
3.05 |
5pcs/bundle |
7.13 |
11-1/2 |
|
1-1/2" |
47.8mm |
2.54mm |
3.05 |
5pcs/bundle |
8.64 |
11-1/2 |
|
2" |
59.9mm |
2.67mm |
3.05 |
4pcs/bundle |
11.50 |
11-1/2 |
|
2-1/2" |
72.6mm |
3.81mm |
3.05 |
1pcs/bundle |
19.10 |
8 |
|
3" |
88.3mm |
3.81mm |
3.05 |
1pc |
23.45 |
8 |
|
3-1/2" |
100.9mm |
3.81mm |
3.05 |
1pc |
26.95 |
8 |
|
4" |
113.4mm |
3.81mm |
3.05 |
1pc |
30.42 |
8 |
|
nominal diameter |
external diameter |
thickness of wall |
length |
packing |
weight/unit(kg) |
Threads Inch |
|
IMC thin conduit (INTERMEDIATE METAL CONDUIT) |
||||||
|
1/2" |
20.7mm |
1.78mm |
3.05 |
15pcs/bundle |
2.53 |
14 |
|
3/4" |
26.1mm |
1.91mm |
3.05 |
10pcs/bundle |
3.50 |
14 |
|
1" |
32.8mm |
2.16mm |
3.05 |
8pcs/bundle |
4.97 |
11-1/2 |
|
1-1/4" |
41.6mm |
2.16mm |
3.05 |
5pcs/bundle |
6.41 |
11-1/2 |
|
1-1/2" |
47.8mm |
2.29mm |
3.05 |
5pcs/bundle |
7.84 |
11-1/2 |
|
2" |
59.9mm |
2.41mm |
3.05 |
4pcs/bundle |
10.43 |
11-1/2 |
Competitive Advantage:
Pre-galvanized imc conduit/galvanized imc conduit /imc steel pipe
1. OD:1/2" to 4" bigger than 2 inch is hot dip galvanized
2. WT:1.60mmmm-10mm
3. Standard:US STANDARD
4. Payment:T/T or L/C
