Product Details:
Payment & Shipping Terms:
|
| Material: | Aluminum | Surface Treatment: | Aluminum |
|---|---|---|---|
| Length: | 10 Ft | Type: | Electrical Pipe |
| Thickness: | 0.85-2.11mm | Size: | 1/2-4 Inch |
| Standard: | UL797 | ||
| Highlight: | 10 Ft Galvanized Steel Pipe,Aluminum Conduit Galvanized Steel Pipe,Electrical EMT Conduit Pipe |
||

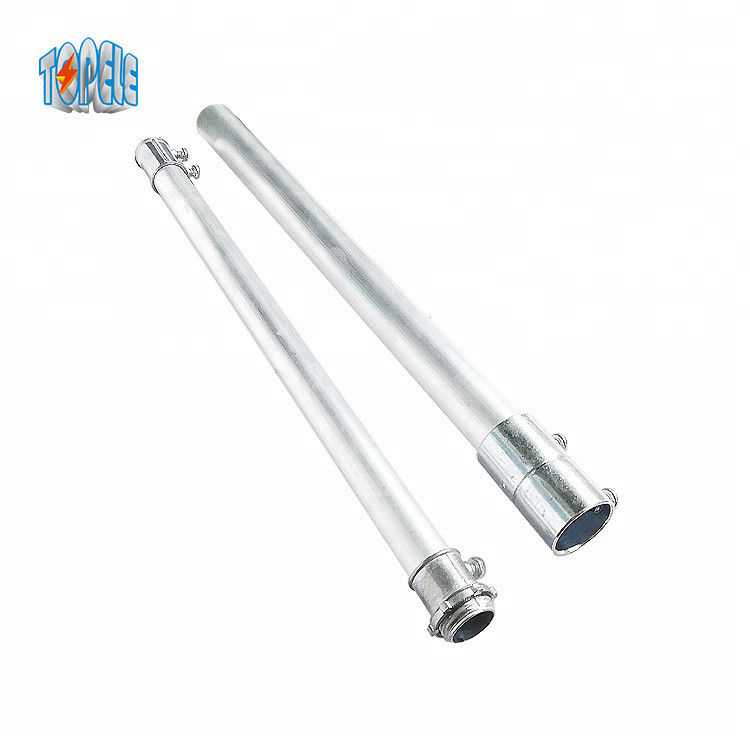

Electrical Galvanized Steel Pipe Supplies Rigid Aluminum Conduit
Description:
ANSI C80.3-1983 Electrical Pre-galvanized /Hot-dipped Galvanized EMT Conduit Pipe
EMT conduit pipe is one of the lightest and thinnest threading pipe in American standard. The pipe head has no thread, and it is connected with set screw type connector which is mostly used in indoor decoration
Model Number:1/2''
Type:Combustion-Proof
Material:Aluminum
Length:10FT/3050mm
Thickness:0.042 inch
Certification:UL
Color:Silver
Application:Electric Cable Wire Protection
Sample:Available
Surface Treatment:Without Oxidation
Keyword:Aluminum EMT Conduit
Applications:
TOPELE EMT Aluminum conduit is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This EMT CONDUIT is made of aluminum alloy, it has a strong corrosion resistance,and light weught help people wasy to intall.
Specifications:
| Nominal diameter | External diameter | Wall Thickness | Length | Packing | Weight/Unit(kg) | |
| 1. EMT Tube(Electrical metallic tubing) standard pipe | ||||||
| 1/2" | 17.93mm | 1.07mm | 3.05m | 20pcs/bundle | 1.36 | |
| 3/4" | 23.42mm | 1.24mm | 3.05m | 15pcs/bundle | 2.07 | |
| 1" | 29.54mm | 1.45mm | 3.05m | 10pcs/bundle | 3.06 | |
| 1-1/4" | 38.35mm | 1.60mm | 3.05m | 5pcs/bundle | 4.56 | |
| 1-1/2" | 44.2mm | 1.65mm | 3.05m | 5pcs/bundle | 5.28 | |
| 2" | 55.8mm | 1.65mm | 3.05m | 5pcs/bundle | 6.78 | |
| 2-1/2" | 73.03mm | 1.83mm | 3.05m | 1pcs/bundle | 9.8 | |
| 3" | 88.9mm | 1.83mm | 3.05m | 1pc | 11.98 | |
| 3-1/2" | 101.6mm | 2.11mm | 3.05m | 1pc | 15.79 | |
| 4" | 114.3mm | 2.11mm | 3.05m | 1pc | 17.8 | |
| Nominal diameter | External diameter | Thickness of wall | Length | Packing | Weight/Unit(kg) |
| EMT Tube - thin wall thickness pipe | |||||
| 1/2" | 17.93mm | 0.85mm | 3.05m | 20pcs/bundle | 1.092 |
| 3/4" | 23.42mm | 1mm | 3.05m | 15pcs/bundle | 1.499 |
| 1" | 29.54mm | 1.1mm | 3.05m | 10pcs/bundle | 2.353 |
| 1-1/4" | 38.35mm | 1.30mm | 3.05m | 5pcs/bundle | 3.623 |
| 1-1/2" | 44.2mm | 1.30mm | 3.05m | 5pcs/bundle | 4.195 |
| 2" | 55.8mm | 1.40mm | 3.05m | 5pcs/bundle | 5.728 |
Advantage
Price: Aluminum EMT is 30% lower than Steel.
Weight: Aluminum EMT is 70% lighter than Steel.
Installation: Aluminum EMT is 50% Less than Steel.
Surface Treatment: Aluminum EMT can be used with/without Oxidation, Steel must be galvanized, Poisonous and Pollutional.
