Product Details:
Payment & Shipping Terms:
|
| Material: | STEEL | Color: | Silvery |
|---|---|---|---|
| Standard: | UL797 | Surface Treatment: | Pre-Galvanized/hot Dip Galvanized |
| Type: | Electrical Pipe | Brand: | TOPELE |
| Highlight: | Hot Dipped Galvanized EMT Electerical Pipes,UL797 EMT Electerical Pipes,Pre Galvanized EMT Electerical Pipes |
||

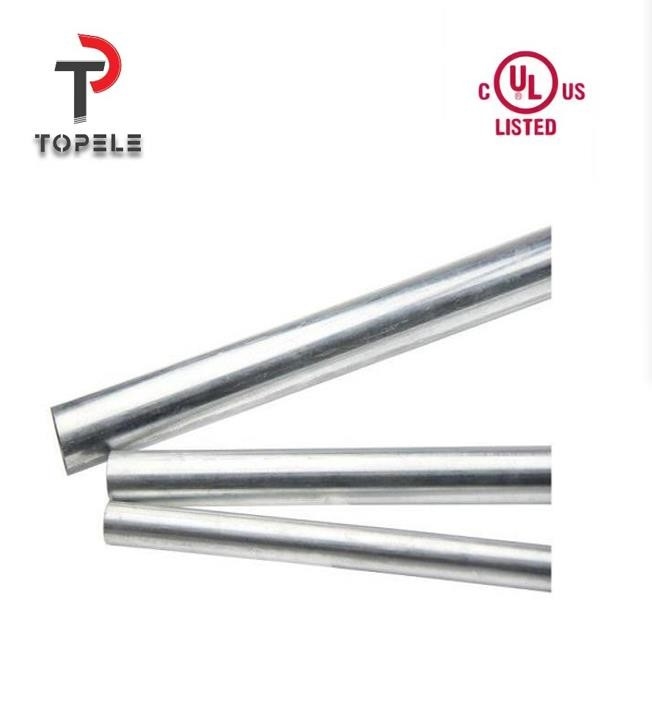

EMT Electerical Pipes Steel Pipe Metallic Hot Dipped Galvanized
Hot Dipped Galvanized Electrical EMT Conduit Steel Pipe Metallic
Galvanized Electrical Metallic Tubing EMT Conduit Steel Pipe
Electrical Galvanized Steel Pipe Electrical Metallic Tubing (EMT)
Description:
ANSI C80.3-1983 Electrical Pre-galvanized /Hot-dipped Galvanized EMT Conduit Pipe
EMT conduit pipe is one of the lightest and thinnest threading pipe in American standard. The pipe head has no thread, and it is connected with set screw type connector.
EMT conduit pipe and accessories /UL797 EMT conduit pipe
C80.3 UL797 Emt'tubing Electrical Conduit
Material: Pre-galvanized
Size: 1/2" to 4"
Applications:
TOPELE EMT conduit is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings.
Specifications:
| Nominal diameter | External diameter | Wall Thickness | Length | Weight/Unit(kg) |
| 1. EMT Tube(Electrical metallic tubing) standard pipe | ||||
| 1/2" | 17.93mm | 1.07mm | 3.05m | 1.36 |
| 3/4" | 23.42mm | 1.24mm | 3.05m | 2.07 |
| 1" | 29.54mm | 1.45mm | 3.05m | 3.06 |
| 1-1/4" | 38.35mm | 1.60mm | 3.05m | 4.56 |
| 1-1/2" | 44.2mm | 1.65mm | 3.05m | 5.28 |
| 2" | 55.8mm | 1.65mm | 3.05m | 6.78 |
| 2-1/2" | 73.03mm | 1.83mm | 3.05m | 9.8 |
| 3" | 88.9mm | 1.83mm | 3.05m | 11.98 |
| 3-1/2" | 101.6mm | 2.11mm | 3.05m | 15.79 |
| 4" | 114.3mm | 2.11mm | 3.05m | 17.8 |
