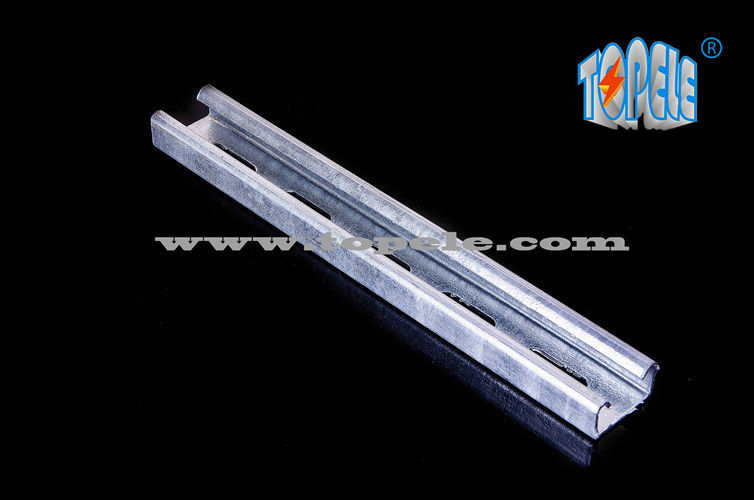

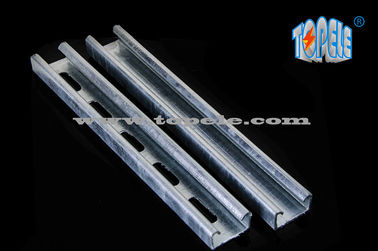

1-5/8 In * 1-5/8 In HDG Unistrut Channel

Black Galvanized 41X41MM Unistrut Channel , HDG Slotted / Plain Strut Channel to Support Conduits

Descrition:

Strut channel is used to mount, brace, support, and connect lightweight structural loads in building construction.

It has three kinds of surface treatment:

1.Powder coated- BS-6497-1984, between 60 and 85 microns thick

2.Hot Dipped Galvanized-for outdoor use to BS EN 1461-1999, between 60 and 80 microns thick

3.Acid Washing or Electrolytic Polishing- for stainless cable basket tray use.

Applications:

Topele Slotted strut channel is a standardized formed structural system used in the construction and electrical industries for light system, often for supporting wiring, plubing, or machanical components such as air conditioning or ventilation systems.

Specifications:

TOPELE slotted STRUT CHANNEL

Type: plain or slotted strut channel

Finish: Black, Pre-galvanized and Hot Dipped Galvanized

Thickness: 1.5mm-3.0mm

Length: 3 meters, other length could be available.

Available Size:

41X41mm, 41X21mm

41x25mm, 41x35mm

41x62mm, 41x82mm

41x41mmx2, 41x25mmx2

41x35mmx2, 41x41mmx2

41x62mmx2, 41x82mmx2

Other sizes be produced according to customer’s drawing.

Competitive Advantage:

1. Design assistance

2. Rapid quotes

3.customized packaging.

4.real solutions for difficult applications.
