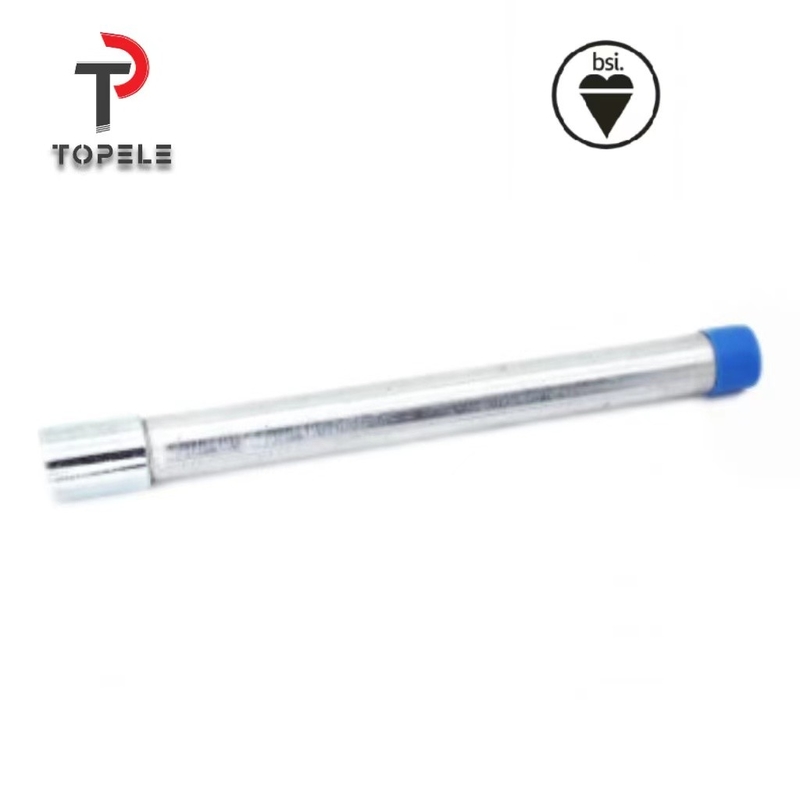

Q195 GI BS4568 Conduit Class 3 BS31 Pre Galvanized For Lighting Circuits

Large Image : Q195 GI BS4568 Conduit Class 3 BS31 Pre Galvanized For Lighting Circuits

Product Details:

Place of Origin:	CHINA
Brand Name:	TOPELE
Certification:	ISO
Model Number:	BS4568

Payment & Shipping Terms:

Minimum Order Quantity:	2000
Price:	$0.30 - $0.4
Packaging Details:	Customized packaging
Delivery Time:	15days
Payment Terms:	L/C, T/T, D/A, D/P
Supply Ability:	5000per day

Contact Now

Detailed Product Description

Highlight:

GI BS4568 Conduit Class 3

Q195 BS4568 Conduit

BS4568 Conduit For Lighting Circuits

Material	Steel Q195
Finish	Pre-galvanized
Standard	BS31-1940
Size	3/4" 1" 1-1/4" 1-1/2" 2"
Usage	Can be used for both exposed and concealed work,use above ground for lighting circuits, and control lines and other low power

Basic Info.

Model NO.

BS31 Conduit

Standard

BS31-1940

Transport Package

Woven Bag

Trademark

TOPELE

Origin

China

Production Capacity

1000000 PCS/Month

Product Description

High Quality Of Class 3 /4 Standard BS31 Conduit

Basic details:

Material:	Steel
Finished:	Pre Galvanized(Class 3)/Hot Dipped Galvanized(Class 4)
Color:	Silver
Usage:	For protection and routing of electrical wiring
Standard:	BS31-1940
Brand Name:	TOPELE

Specifications:

Size	Outside Diameter		Wall Thickness (MM)	Length(Meters)	Length Of Thread		Primary Bundle (Pcs)
Size	MIn	Max	Wall Thickness (MM)	Length(Meters)	Min	Max	Primary Bundle (Pcs)
Heavy Gauge
3/4''	18.9mm	19.05mm	1.60+_0.15	3.81	11.5mm	13.5mm	10
1''	25.2mm	25.4mm	1.60+_0.15	3.81	13.0mm	15.0mm	10
1-1/4''	31.5mm	31.8mm	1.60+_0.15	3.81	16.0mm	18.0mm	10
1-1/2''	37.8mm	38.0mm	1.80+_0.15	3.81	19.0mm	22.0mm	3
2''	50.4mm	50.6mm	1.80+_0.15	3.81	19.0mm	22.0mm	3
Light Gauge
3/4''	18.9mm	19.05mm	1.60+_0.15	3.81	13.0mm	15.0mm	10
1''	25.2mm	25.4mm	1.60+_0.15	3.81	16.0mm	18.0mm	10
1-1/4''	31.5mm	31.8mm	1.60+_0.15	3.81	18.0mm	20.0mm	10
1-1/2''	37.8mm	38.0mm	1.80+_0.15	3.81	19.0mm	22.0mm	3
2''	50.4mm	50.6mm	1.80+_0.15	3.81	19.0mm	22.0mm	3

TOPELE BS31 CONDUIT is designed to protect and route cables and conductors. It can be installed either exposed or concealed. Install it inside or outside using rain-tight fittings. This BS31 CONDUIT is made of Pre-galvanized steel and has an organic coating inside.
BS31 CONDUIT provides a damage-resistant duct for electrical conductors and cables. This conduit shields internal wires from magnetic fields and features electroplated couplings to resist build up of zinc on the threads.
