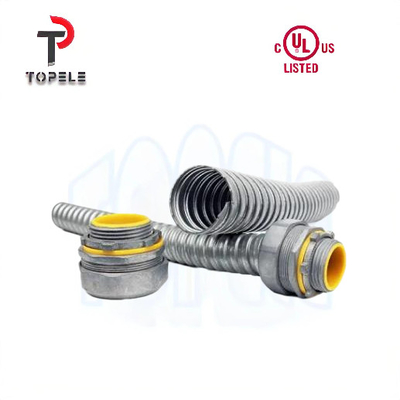

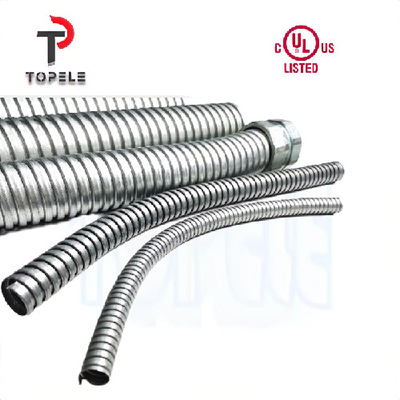

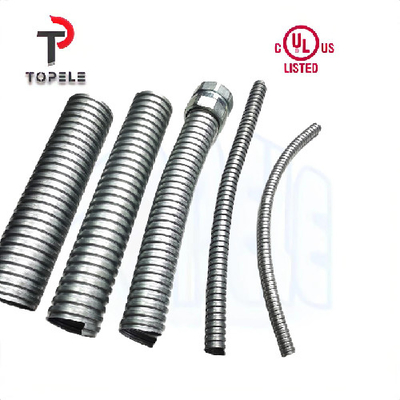

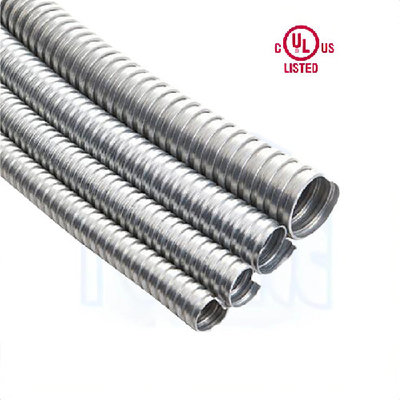

Galvanized Flexible Steel Conduit Flexible Tube
Application
Steel Flexible Conduit offered by us is used for mechanical protection of cables and wires in tunnels, hospitals, high-rise office blocks and public buildings, airlines, underground and other places. Further, these are also used for tight-spot installation and in places where water tightness is required. Used primarily in dry areas where it would be impractical to instal EMT or other non-flexible conduit.
Common size:
| TOPELE# | SIZE | Metric Designator | Inside Diameter | Outside Diameter | Min.Bend | Meters | ||
| Min(mm) | Max(mm) | Min(mm) | Max(mm) | |||||
| GFC01 | 3/8" | 12 | 10.82 | 12.09 | 14.22 | 15.49 | 25 | 100 |
| GFC02 | 1/2" | 16 | 18.44 | 19.97 | 21.84 | 23.37 | 38 | 100 |
| GFC03 | 3/4" | 21 | 22.64 | 24.17 | 26.54 | 28.07 | 45 | 50 |
| GFC04 | 1" | 27 | 28.82 | 30.85 | 33.02 | 35.05 | 55 | 50 |
| GFC05 | 1-1/4" | 35 | 34.47 | 36.50 | 39.37 | 41.40 | 62 | 25 |
| GFC06 | 1-1/2" | 41 | 41.79 | 44.33 | 46.99 | 49.53 | 90 | 25 |
| GFC07 | 2" | 53 | 54.29 | 56.83 | 59.69 | 62.23 | 110 | 20 |
| GFC08 | 2-1/2" | 63 | 65.44 | 70.52 | 72.64 | 77.72 | 130 | 20 |
| GFC09 | 3" | 78 | 78.14 | 83.22 | 85.34 | 90.42 | 160 | 10 |
| GFC10 | 4" | 103 | 103.54 | 108.64 | 110.74 | 115.85 | 210 | 10 |
Packing & Shipping
EMT conduit are packed in bundles with woven bag, we also can put customers' sticker on pipes,woven bag, we will put a big sticker with detailed information for customers to distinguish different sizes. For regular packing information, please check the Table .
