Product Details:
Payment & Shipping Terms:
|
| Available Sizes: | 1/2"-2" | Certification: | UL |
|---|---|---|---|
| Material: | PVC | Temperature: | -10°-70° |
| Type: | Liquid Tight Conduit Fittings | Delivery: | Shipped In 30 Days After Payment |
| Highlight: | Nonmetallic PVC Conduit Connector,PVC Conduit Fitting Connector,Liquidtight PVC Conduit Connector |
||

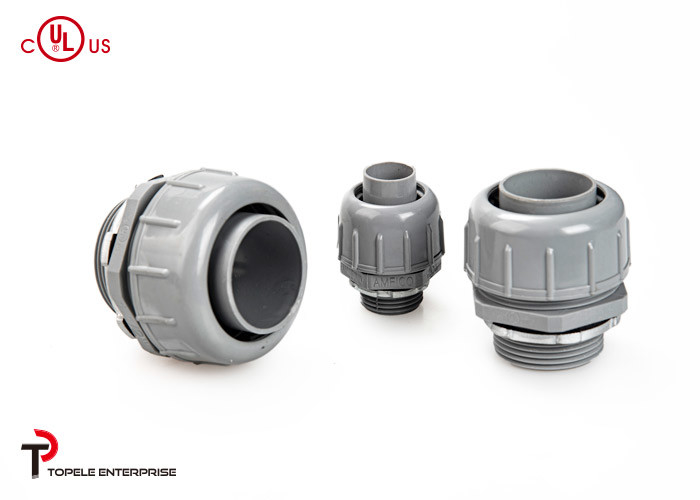

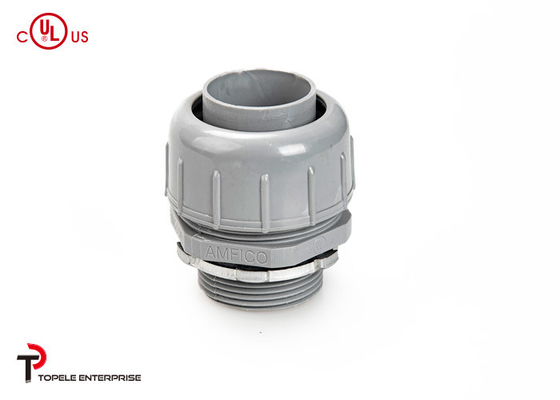

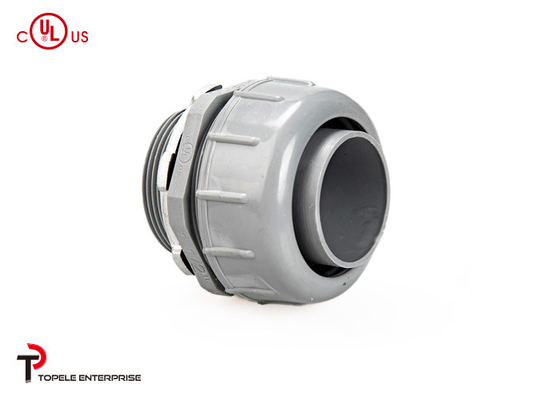

1/2 in. Liquidtight Nonmetallic Straight PVC Conduit Fitting Connector
Quick Detail:
1/2 in. Liquidtight Nonmetallic Straight PVC Conduit Fitting Connector
1) Material:6/6 Nylon
2) Standard:UL
3) Thread: NPT
4) UL & Cul
For American standard Non Metallic Liquid Tight
Material:6/6 Nylon
Size: 3/8" to 2"
Applications:
These nonmetallic straight connectors are used in both wet and dry locations when conduits and fittings are not subjected to physical damage. They are used to terminate andseal Liquid -Tight Flexible Nonmetallic Type B Conduit toeither an oil-tight, liquid-tight or rain-tight box or enclosure.
Specifications:
|
Part number |
Size
|
Std. Pkg. |
|
SSTC-38 |
3/8” |
20 |
|
SSTC-50 |
1/2” |
20 |
|
SSTC-75 |
3/4” |
20 |
|
SSTC-100 |
1” |
10 |
|
SSTC-125 |
1-1/4” |
10 |
|
SSTC-150 |
1-1/2” |
5 |
|
SSTC-200 |
2” |
5 |
TOPELE Liquid Tight NM Straight PVC Conduit Connectors are made to use with Non-Metallic Liquid Tight Conduit. There is no threading of conduit or tubing required. TOPELE connectors give a superior liquid tight seal and pull out strength.
1. Model number: LTC
2. Size: 3/8"-4"
3. Material: PVC, Nylon
4. Locknut Material: Steel
5. Application: For use with non-metallic Type B liquidtight conduit to terminate and seal conduit to liquidtight, oiltight, or raintight box or enclosure
